Statements editor

For components Statements and Statements on the layer a specialized editor is available. It allows defining statements using the JSON format.

Editor location

The statements editor is available in the Basic properties components Statements and Statements on the layer.

Illustration 1. Embedding location of the statements editor

The editor opens after clicking Add statement.

Editor presentation

Opening the statements editor results in a drawer sliding out presenting an area for entering text in JSON format. For a newly created component it contains only curly braces without content. Line numbers are visible on the left side of the editor.

The statements editor can be displayed in read-only mode and in edit mode. Read-only mode only allows viewing saved values.

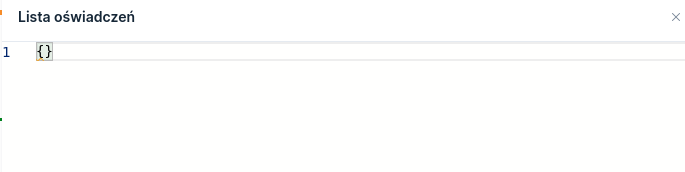

Illustration 2. Appearance of the statements editor for a newly created component

The editor highlights both semantic and syntactic errors in real time. Hovering the mouse cursor over the red underline indicating an error displays a tooltip showing its content.

Illustration 3. Example information about field requirements

Editor behavior

The statements editor supports syntax suggestion functionality. After pressing the key combination Ctrl + Space a suggestion containing possible fields to enter is displayed depending on the current cursor position in the editor. Selecting one of them and pressing the Enter key inserts the selected suggestion into the editor.

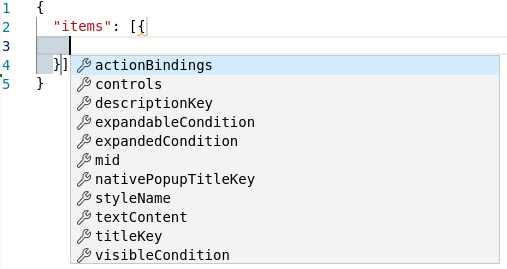

Illustration 4. Suggestions displayed after pressing the Ctrl + Space key combination

The editor can be closed in two ways. The first is the symbol X located in the top right corner (visible in Illustration 2). The second way is to click outside the editor area.

If, when closing the editor, the entered data is semantically and syntactically correct — it is saved. If it contains any error — changes are discarded. In both cases the drawer closes.

Available fields

The statements editor accepts the fields listed below. Their meaning will be explained in the next paragraph. Required fields are additionally marked:

Example JSON structure

{
  "items": [
    {
      "controls": [
        {
          "mid": "text",                 // required
          "titleKey": "text",           // required
          "type": "CHECKBOX|RADIO",      // possible values CHECKBOX or RADIO, required
          "visibleCondition": "text",
          "styleName": "text",
          "requiredCondition": "text",
          "notSelectedErrorTextKey": "text",
          "requiredNotAcceptedErrorTextKey": "text",
          "mastercheckbox": "text"
        }
        // ...
      ],
      "actionBindings": {
        "bindings": [
          {
            "event": "EDIT"             // possible value EDIT, required
          }
          // ...
        ]
      },
      "mid": "text",                   // required
      "textContent": "text",
      "textContentUnexpanded": "text",
      "visibleCondition": "text",
      "expandableCondition": "text",
      "expandedCondition": "text",
      "descriptionKey": "text",
      "nativePopupTitleKey": "text",
      "styleName": "text"
    }
    // ...
  ]
}

Meaning of fields

Property	Description
items	List of defined statements to display.
textContent	An artifact with the statement content displayed below the title given in titleKey. If the artifact is specified but the key is not provided titleKey and a control is defined in controls, then the textContent will not contain the control.
textContentUnexpanded	An artifact with the statement content displayed when the statement is collapsed.
mid	Business identifier of the given statement.
visibleCondition	Conditions under which the given statement should be displayed. If the condition is empty or invalid, the value "true" will be evaluated.
styleName	Style name.
expandableCondition	The condition for which a collapse/expand text should be displayed next to the statement title. If the condition is empty or invalid, the value "false" will be evaluated. Note: if titleKey is undefined, the text will not appear.
expandedCondition	If expandableCondition is set to "true", the property expandedCondition determines whether and when the statement content should be expanded by default. If the condition is empty or invalid, the value "true" (content expanded) will be evaluated.
titleKey	The title key of a single statement defined in the Translations. Variables are resolved in keys.
nativePopupTitleKey	The title key of the native popup that will appear when clicking "More" → this text can be overridden by i18n.statements.item.native.more in the Translations. The popup is displayed only in the native application. If nativePopupTitleKey is not defined, the value of the key titleKey.
event	The event to add if an action on the application associated with the given statement item has been defined.
controls	List of defined controls for the given statement. The explanation of the object fields controls is provided below.

Defining the list of controls (controls)

Property	Description
mid	Business identifier of the control (required field).
titleKey	The title key displayed at/above the control.
visibleCondition	Conditions under which the control should be displayed. If the condition is empty or invalid, the value "true" will be evaluated.
requiredCondition	The condition for which the control should be required. If the condition is empty or invalid, the value "true" will be evaluated.
type	Control type: RADIO - a statement with two radios YES/NO (other types like CHECKBOX may also occur according to the JSON definition).
notSelectedErrorTextKey	Translation key overriding the text "You did not make a selection".
requiredNotAcceptedErrorTextKey	Translation key overriding the text "Consent for the selected statement is required".
styleName	Style name.
mastercheckbox	Id of the master checkbox.
