Tile group - TileGroup

Availability of the functionality depends on the license and may not be available in all deployments.

A single-choice group whose graphical representation of the option is a tile

Component properties

Eximee Designer property	Attribute name in the Source	Description
Label (section Basic properties)	label	Label for the component.
Number of columns (section Layout)	columns	Number of columns in the component - the value is taken into account only when the component domain is fed by External Data Source (External Data Source).
Field description (section Basic properties)	description	Additional description for the tile group (displayed under the tiles)

More information about the component properties: Common component properties

Component value

The component value is set to the value of the field selected by the user Tile (Tile - Tile). No selection means that the property value of the component is an empty text.

Internal components

Inside the component Tile Group one type of component can be embedded - Tile (component description in Tile - Tile). The way components are arranged inside Tile Groups can be specified using the field Number of columns available in the section Layout.

Component input parameters

Parameter	Description
id	The value taken by the selected tile (required field). An empty value returned by the service will cause a system error.
content	The tile content saved in HTML (scripts inside this HTML are not supported by the platform).
title	Tile title.
value	The value the group will take after the domain is populated (optional field). If a value outside the domain is returned, the default value will be set (if it is in the new domain) or an empty one.

Clearing the selection

To clear the current selection, set an empty value for the component (value), where an empty value means an empty text: "". It should also be noted that resetting the selection does not mean restoring the default value, but deselecting the currently selected Tile.

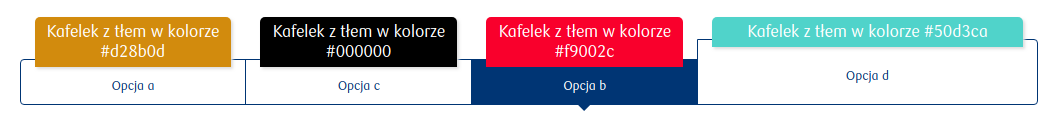

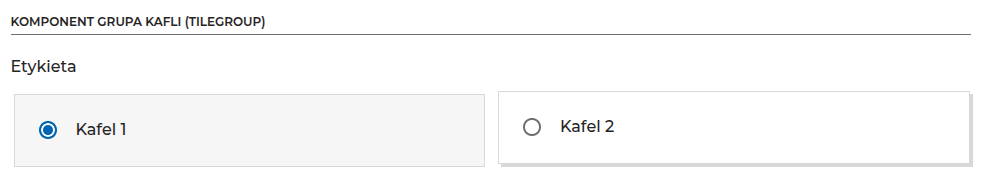

Figure 1. Example appearance of the component in the application

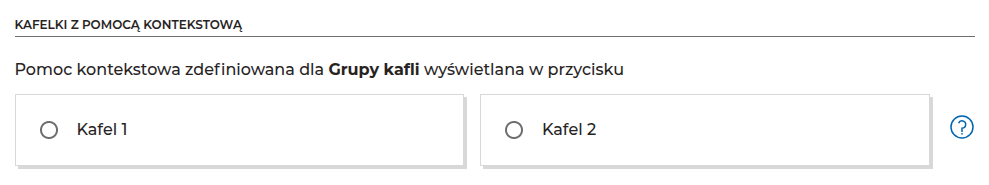

Figure 2. Example appearance of the component with tiles containing a label and contextual help

Example of populating the Tile Group from a script

To dynamically generate selectable options (tiles), the Tile Group component can be populated by a script using External Data Sources.

The example below returns an array of three tiles with the choice of a bank contact method.

function callService(context) {
  const videoContent = "Video call";
  const phoneContent = "Phone";
  const branchContent = "Meeting at the branch";

  return [
    { id: "wideorozmowa", content: videoContent, columns: 2 },
    { id: "telefon", content: phoneContent, columns: 2 },
    { id: "spotkanie", content: branchContent, columns: 2 },
  ];
}

After setting the above script as the data source for the component, go to the mapping configuration in the tab Output parameters. Then assign the fields returned by the script to the internal parameters Tile Groups:

• id - mapping to id from the script; this is the unique identifier of the selected option (the value that will be saved in the application after clicking the tile),
• content - mapping to content from the script; this value allows HTML code to be injected, which will format the description on the tile,
• columns - mapping to columns from the script; specifies the number of columns in the component.

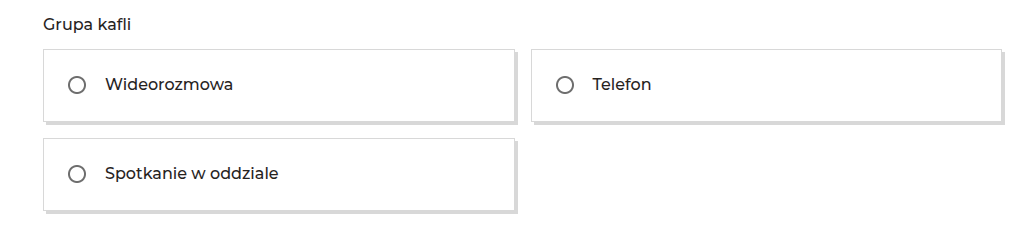

Figure 3. Example of a Tile Group populated by a script

Demo applications: demoTileGroup
